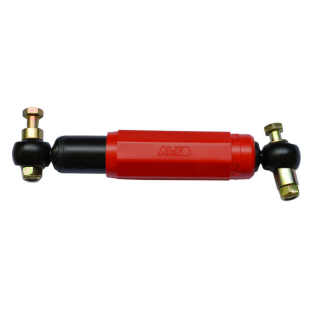

AL-KO Kober Octagon shock absorbers red, single-axle vehicles up to 1800 kg, tandem-axle vehicles up to 3500 kg
The conventional standard shock absorbers on the market are designed for a weight range that is too high (e.g. 0 to 4.0 t ). Optimal damping is only given with medium trailer
weights (2.0 t).
In the lower weight range, there is overdamping. The effect is the trailer's jumping and bumping. In the upper weight range there is underdamping.
The result:
A barely noticeable improvement in driving safety. AL-KO Octagon axle shock absorbers red, on the other hand, are specially adjusted for a certain weight range and thus optimally improve the trailer's driving characteristics.
Information about the article:
Single-
axle vehicles up to: 1800 kg
Tandem
axles up to: 3500 kg
Retracted
length: 250 mm
Working area: min. 258 mm, max. 280 mm
Screw hole
: M12
max. retracted 250mm
max. extended 380mm
Choosing the right shock absorber can have a noticeably positive effect on the driving characteristics of your combination. You can therefore rely on AL-KO axle shock absorbers, which have optimal spring properties in every weight class.
Optimal damping:
Every trailer driver fears the build-up vibrations of a trailer on uneven roads. With the AL-KO Octagon axle shock absorber red the dangerous "hopping" is significantly reduced.
This means:
- more driving stability
- more braking stability
- optimal ground contact
Long service life:
An overload protection prevents material overload. AL-KO only uses quality seals. The valve is made of chrome-plated sintered metal. The roughness of the piston rod is only 0.1 Ra. Dust protection between the outer and inner pipe AL-KO only uses special oil.
Installation:
The rubber-mounted articulated connection eyes enable a low-wear, tension-free installation position of up to 5°. In contrast to commercially available axle shock absorbers, the screws of the AL-KO Octagon axle shock absorber red are firmly integrated in the eye of the damper and are therefore part of the scope of delivery of a damper together with the nuts.
Scope of delivery:
1 x Alko Octagon shock absorber red, 1800 kg
with screws and nuts
| Item information |
Value |
| Shipping weight: |
1,65 kg
|
