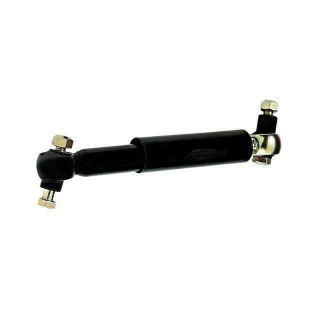

AL-KO Octagon Universal Compact shock absorber, axle shock absorber black
Easy installation
The rubber- mounted articulated connection eyes enable a low- wear, tension-free installation position up to 5° inclined. In contrast to commercially available axle shock absorbers, the screws of the AL-KO Kober Universal axle shock absorbers are firmly integrated in the eye of the damper and, together with the nuts, are part of the scope of delivery of every damper.
Information about the article:
Single-axle up to: 1500 kg
Tandem-
axle up to: 3000 kg
Retracted
length: 250 mm
Working area: min. 258 mm, max. 280 mm
Screw
hole: M12
max. retracted 250mm
max. extended 380mm
Choosing the right shock absorber can have a noticeably positive effect on the driving characteristics of your combination. You can therefore rely on AL-KO axle shock absorbers, which have optimal spring properties in every weight class.
Long service life:
Overload protection prevents the material from being overstressed. AL-KO Kober only uses quality seals. The valve is made of chrome-plated sintered metal. The roughness of the piston rod is only 0.1 Ra. Dust protection between the outer and inner pipe AL-KO only uses special oil.
Installation:
The rubber-mounted articulated connection eyes enable a low-wear, tension-free installation position of up to 5°. In contrast to commercially available axle shock absorbers, the screws of the ALKO Universal Compact shock absorber are firmly integrated in the eye of the shock absorber and are therefore part of the scope of delivery of a shock absorber together with the nuts.
Scope of delivery:
1 x Alko shock absorber black, 1500 kg
with screws and nuts
| Item information |
Value |
| Shipping weight: |
1,03 kg
|
