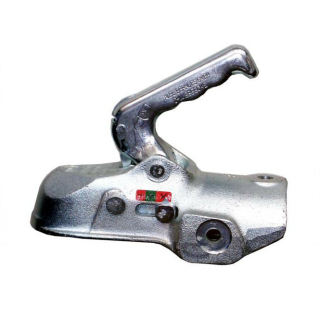

Albe Berndes EM 300 R malleable cast iron version B 50/51 mm 12/14 bore
Ball coupling, malleable cast iron version for braked trailers up to 3000 kg permissible axle load up to 150 kg permissible support load at the coupling point
D- / Dc-value 26.9kN, EG approval 00-0377e1
for draw tube diameter 50/51 mm
fastening hole spacing 40 mm cross screwing
for fastening screws M12 vertical
and M14 horizontal
Replaces EM 140-A / 1 with 12/14 mm screw connection
Version B
PDF
| Item information |
Value |
| Shipping weight: |
2,20 kg
|
Product safety information
Manufacturer information:
ALBE Berndes gehört zu Winterhoff (Member of Dexko Global)
Ichenhauser Str. 14
Kötz, , 89359
info@alko-tech.com
