Knott K 7.5 version K drawbar, angular 50 mm

Knott K 7.5 version K drawbar, angular 50 mm

Knott K 7.5 version K drawbar, angular 50 mm

Knott K 7.5 version K drawbar, angular 50 mm

SKU: 6E0081.045
Category: up to 750 kg
Manufacturers:

K 7.5 version K

£ 13,00

excl. 0% VAT , plus

Delivery time: 1 - 5 Workdays Other countries

Description
Question about item

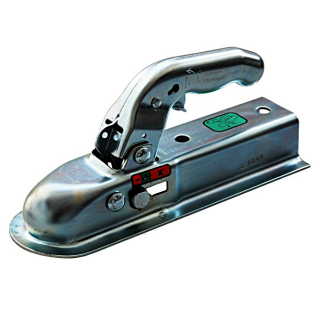

Knott K 7.5 version K for square drawbar 50 mm

Knott tow ball coupling, sheet steel version for trailers up to 750 kg permissible axle load up to 75 kg permissible support load at the coupling point

D-/Dc value 7.2kN, EC approval 00-1062e1

for square drawbar diameter A = 50 mm
Mounting hole spacing D= 90 mm vertical screw connection
Mounting screws M12, B = 12.5 mm
F = 16 mm
G = 229 mm

Item information	Value
Shipping weight:	1,50 kg

Product safety information

Manufacturer information:

KNOTT
Obinger Straße 15
Eggstätt, Deutschland, 83125
info@knott.de
https://www.knott.de/

Contact data

First name - optional

Last name - optional

E-Mail

Question about item

Your question

Suitable accessories

Screw set for coupling 05750

Screw set for coupling 05750

Screw locking agent 50 ml, medium viscosity, high strength

Screw locking agent 50 ml, medium viscosity, high strength

£ 69,56 per 100 ml
